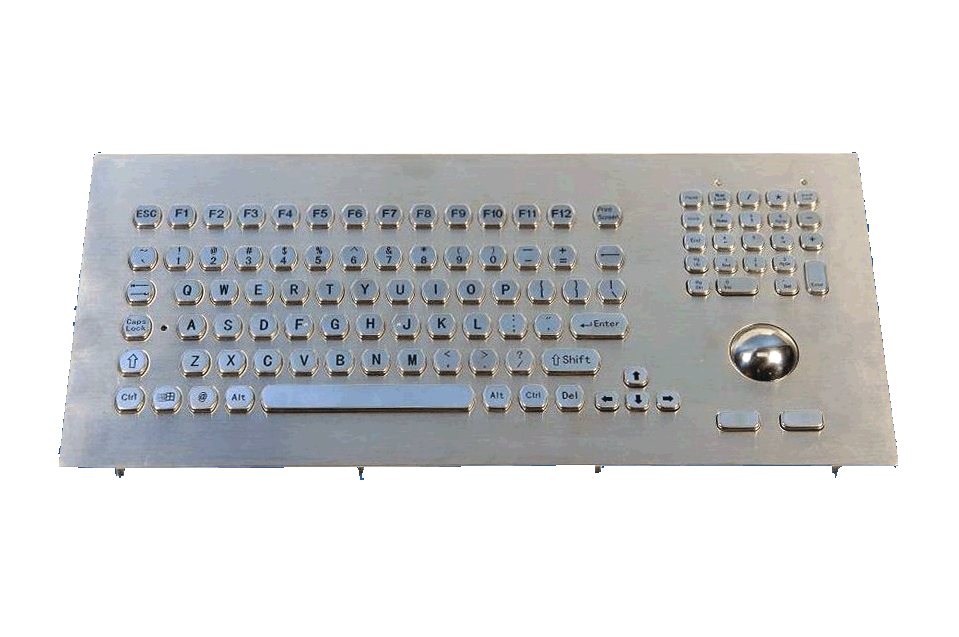

Metal Keyboard

Product Details



Features:

  • Compact Stainless steel keyboard with Trackball,FN keys&Numeric keypad

  • High quality medium travel keys

  • Compatible with WINDOWS98/ME/2000/XP

  • Can be cleaned with soapy water, disinfectant or other cleaning agents

  • Tactile feel, full-long travel switches, with unique double over-travel protection

  • Resistant to dirt, dust and liquid

  • Very rugged vandal proof design

  • PS/2 or USB interface available

  • Mounting kit and Desktop kit optional

  • Customized layout available

  • Backside with install studs



Material:

  • Front Panel: 304 stainless steel

  • Keys: 304 stainless steel

  • Trackball: 304 stainless steel

  • Back panel: Aluminum



Dimension:

  • Front Panel: 385×180mm

  • Overall: 385×180mm



Mechanical Performance:

  • Operating Temperature: 0°to+45°

  • Storage Temperature: -30°to +70°

  • Relative humidity: 30%~95%

  • Lifespan: >1 million operations per key

  • Trackball diameter: 38mm

  • Key trip:2mm

  • Key pressure: 80g

  • Weight: 2.2kg



Electrical Performance:

  • Voltage: 5.0VDC±5%

  • Electric current: 10mA

  • EMC  Emission: EN55022(B)

  • Trackball resolution: 800dpi



Reliability:

  • MTBF: >20,000 hours

  • MTTR: < 30 minutes



DKM-FTA-1002-FRONT
